Cheysson pattern scales for ggpattern

Pattern fill scales using Cheysson patterns from the Albums de Statistique Graphique. These scales work with ggpattern geoms to apply both colors and hatching patterns.

Usage

scale_pattern_fill_cheysson(palette = "1881_03", reverse = FALSE, ...)

scale_pattern_type_cheysson(palette = "1881_03", reverse = FALSE, ...)

scale_pattern_angle_cheysson(palette = "1881_03", reverse = FALSE, ...)

scale_pattern_density_cheysson(palette = "1881_03", reverse = FALSE, ...)

Arguments

palette

Name of palette (e.g., "1881_03") or palette type ("sequential", "diverging", "grouped", "category"). Default is "1881_03".

reverse

Whether to reverse the pattern order. Default is FALSE.

...

Additional arguments passed to ggplot2 scale functions

Value

A ggplot2 discrete scale object for the specified pattern aesthetic (pattern_fill, pattern_type, pattern_angle, or pattern_density). These scales apply the historically accurate Cheysson patterns to ggpattern geoms.

Details

These scales require the ggpattern package. Use with ggpattern geoms like geom_col_pattern(), geom_bar_pattern(), etc.

The scales apply multiple pattern aesthetics simultaneously:

• fill: Base fill color

• pattern_type: Type of pattern (none, stripe, crosshatch)

• pattern_fill: Color of pattern lines

• pattern_angle: Angle of stripes

• pattern_density: Density of pattern lines

Examples

# \donttest{
# Requires ggpattern package
if (requireNamespace("ggpattern", quietly = TRUE)) {
  library(ggplot2)
  library(ggpattern)

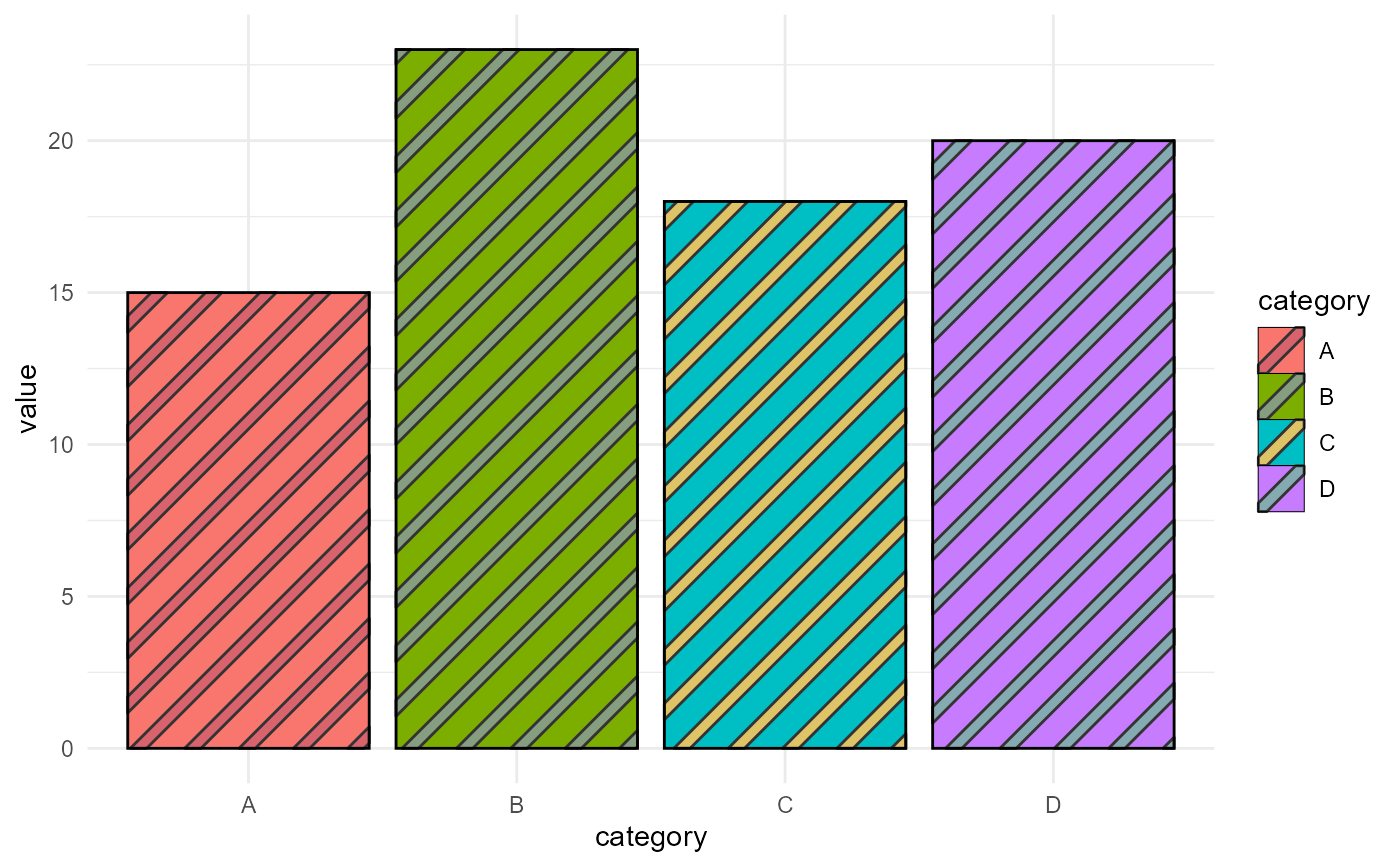

  # Basic bar chart with patterns
  data <- data.frame(
    category = LETTERS[1:4],
    value = c(15, 23, 18, 20)
  )

  ggplot(data, aes(category, value, fill = category)) +
    geom_col_pattern(
      aes(
        pattern_type = category,
        pattern_fill = category,
        pattern_angle = category
      ),
      pattern = "stripe",
      pattern_density = 0.3,
      color = "black"
    ) +
    scale_pattern_fill_cheysson("category") +
    scale_pattern_type_cheysson("category") +
    scale_pattern_angle_cheysson("category") +
    theme_minimal()
}

# }
