Labeling Function for Mosaic Displays Using Points

This labeling function for use with strucplot displays, such as mosaic, draws random points within each cell of a mosaic plot, where the number of points represents observed or expected frequencies. This creates a "dot-density" visualization that provides a direct visual representation of cell frequencies.

Usage

labeling_points(
  labels = TRUE,
  varnames = labels,
  value_type = c("observed", "expected"),
  scale = 1,
  pch = 19,
  size = unit(0.5, "char"),
  gp_points = gpar(col = "black", alpha = 0.7),
  margin = unit(0.05, "npc"),
  seed = NULL,
  jitter = 1,
  clip = FALSE,
  ...
)

Arguments

labels: Logical vector or scalar indicating whether labels should be drawn for the table dimensions via labeling_border. Defaults to TRUE.
varnames: Logical vector or scalar indicating whether variable names should be drawn. Defaults to labels.
value_type: Character string specifying whether to display "observed" or "expected" frequencies as points.
scale: Numeric scaling factor. The number of points drawn equals round(frequency / scale). Use larger values for tables with large counts.
pch: Point character (plotting symbol). Default is 19 (filled circle).
size: Point size as a unit object. Default is unit(0.5, "char").
gp_points: A gpar object controlling point appearance (color, alpha, etc.), for example: gp_points = gpar(col = "red").
margin: Margin inside cells as a unit object. Points are drawn within this inset area. Default is unit(0.05, "npc").
seed: Optional integer seed for reproducible point placement across several similar plots. If NULL (default), no seed is set.
jitter: Numeric jitter amount (0-1) for point placement. Default is 1 (full random). Values < 1 create more regular patterns.
clip: Logical indicating whether to clip points at cell boundaries. Default is FALSE.
...: Additional arguments passed to labeling_border for axis labels.

Value

A function of class "grapcon_generator" suitable for use as the labeling argument in strucplot and related functions like mosaic.

Details

This function follows the "grapcon_generator" pattern used by vcd labeling functions. It returns a function that can be passed to the labeling argument of strucplot, mosaic, or related functions as the argument labeling = labeling_poionts(...).

The visualization is inspired by the conceptual model described in Friendly (1995), where cell frequencies are represented as physical counts of objects. Under independence, point density would be uniform across cells (adjusted for marginals), so departures from independence become visible as density variations.

This approach is related to sieve diagrams (sieve), which also use density to represent association.

References

Friendly, M. (1995). Conceptual and Visual Models for Categorical Data. The American Statistician, 49, 153-160. doi:10.1080/00031305.1995.10476131

Friendly, M. (1997). Conceptual Models for Visualizing Contingency Table Data. In M. Greenacre & J. Blasius (Eds.), Visualization of Categorical Data (pp. 17–35). Academic Press. https://www.datavis.ca/papers/koln/kolnpapr.pdf

Meyer, D., Zeileis, A., and Hornik, K. (2006). The Strucplot Framework: Visualizing Multi-way Contingency Tables with vcd. Journal of Statistical Software, 17(3), 1-48. doi:10.18637/jss.v017.i03

Examples

library(vcd)

# 2-way table of Hair and Eye color
HairEye <- margin.table(HairEyeColor, 2:1)

# Basic usage - observed frequencies as points

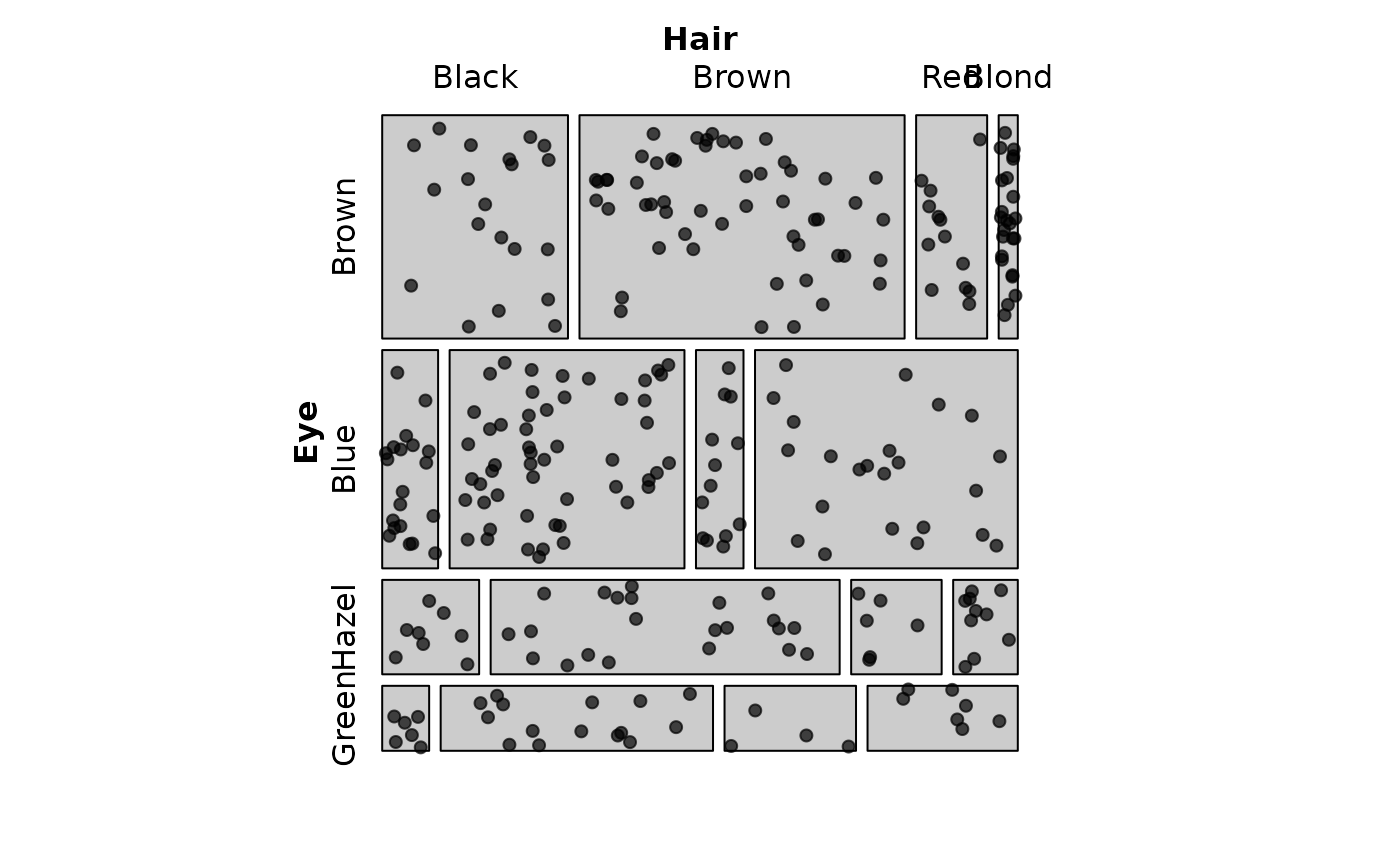

mosaic(HairEye,
       labeling = labeling_points(scale = 1))


# Show expected frequencies instead of observed
mosaic(HairEye,
       labeling = labeling_points(
                     value_type = "expected",
                     scale = 2,
                     seed = 42)
      )

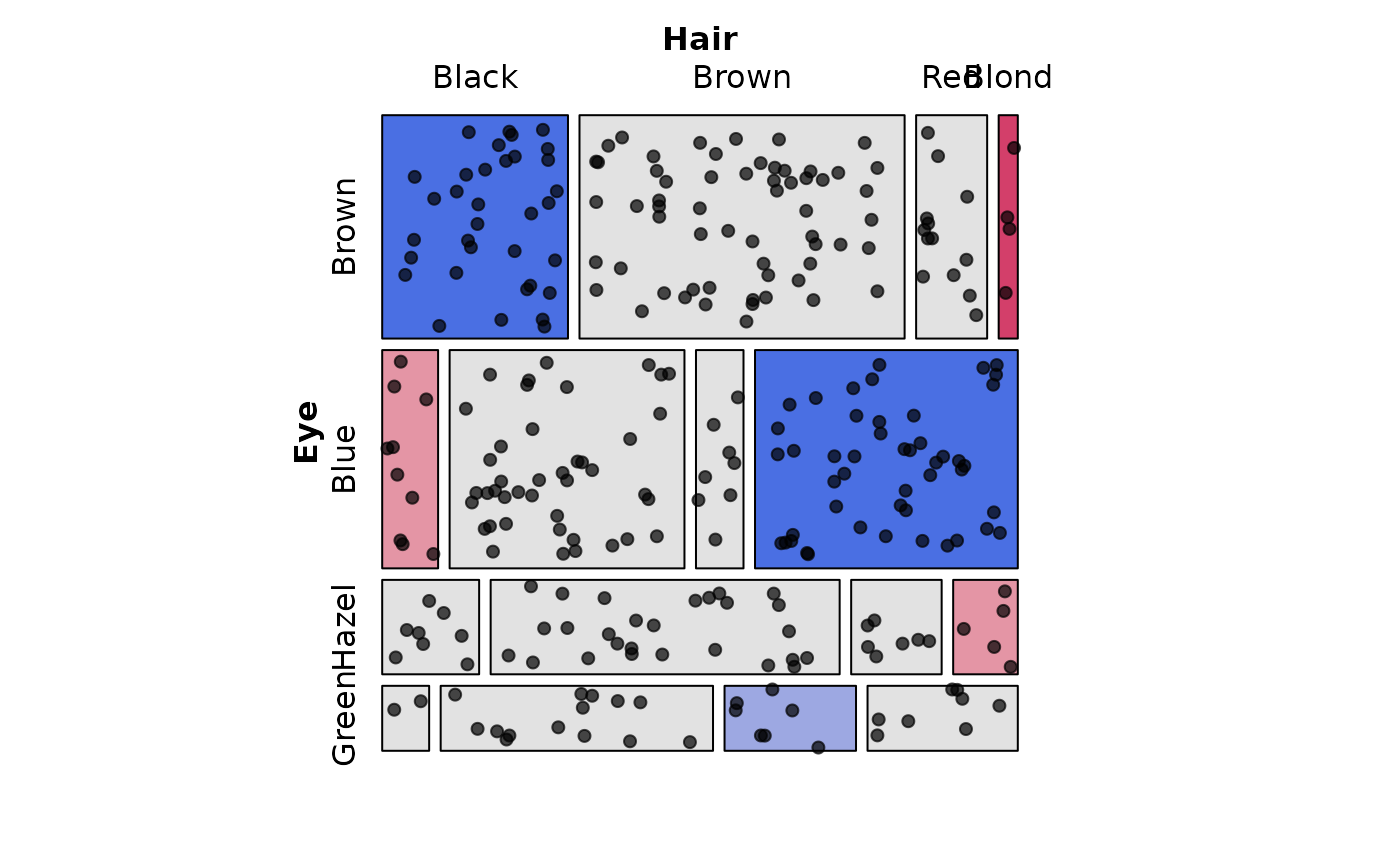

# Combine with residual shading
mosaic(HairEye,
       shade = TRUE, legend = FALSE,
       labeling = labeling_points(scale = 2, seed = 42))

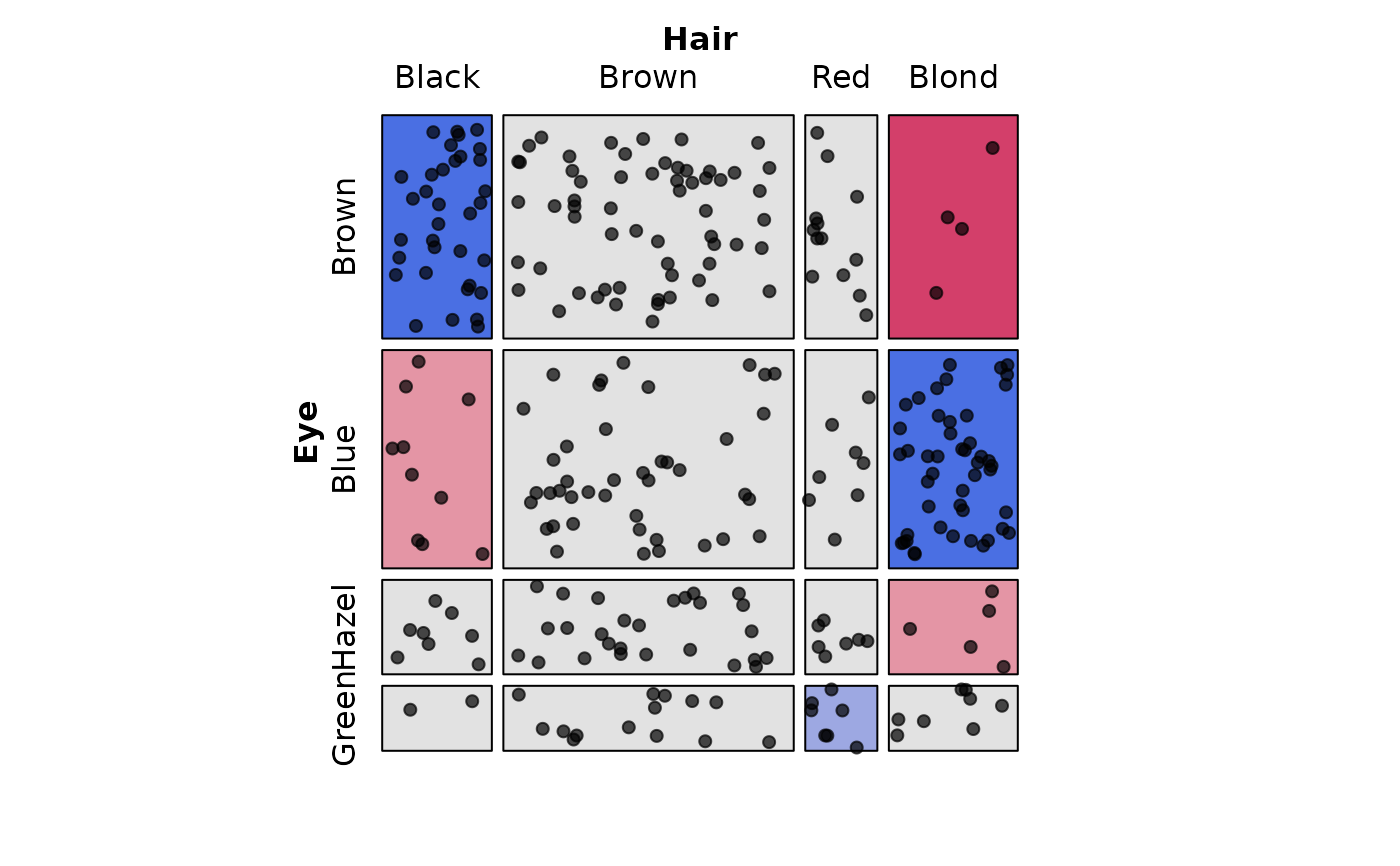

# Make tiles show expected frequencies, show points for observed frequencies
# Reproduces: Fig 6 in Friendly (1995)
mosaic(HairEye,
       type = "expected",
       shade = TRUE, legend = FALSE,
       labeling = labeling_points(scale = 2, seed = 42))
